Tungsten Carbide Wear Parts Carbide Natural Gas Components For Sealing / Drilling
Tungsten Carbide Natural Gas Components are widely used in gas mining and quarrying and cutting process, also may be placed on a heavy excavators used in bit due to its high hardness of the cemented carbide and other characteristics. It's also used as sealing rings or pump parts in natrual gas industry.
Tungsten carbide is a hard material composed of a metal matrix composite where carbide particles act as the aggregate and a metallic binder serves as the matrix. It is one of the most successful composite engineering materials ever produced. Its unique combination of strength, hardness and toughness satisfies the most demanding applications.
Features of Tungsten Carbide Natrual Gas Components:
Size: Various size,Custom-made available, accept customized drawing or sample
Hardness: about 90HRA
Pressure:105 Mpa
Sealing: good and durable
Carbide Gas Components Advantages:
Labour intensity could be reduced.
High wear resistance and impact-resistance.
High efficiency could be promoted sharply in penetration of high-medium hard rock formation.
To repeat repair & greaning are not necessary, long drill life.
Recommended Material Grade for Tungsten Carbide Gas Components:
| Mine, geological tool special-purpose trademark |
| YK5 | | 14.80-15.10 | 89 | 2060 | High toughness and the very good resistance to wear, mainly used for hitting the small specification the impact on drill with the ball tooth, the rock drill piece, drills the hard rock |
| YK10 | | 14.60-14.85 | 89.5 | 2260 | High toughness and the very good resistance to wear, mainly used for hitting the small specification the impact on drill with the ball tooth, the rock drill piece |
| YK20 | | 14.30-14.60 | 86.5 | 2350 | High toughness and the resistance to wear, suitable for to inlay the system impact rotation rock drilling rock drill head, drills hard and the hard rock |
| YK25 | | 14.35-14.70 | 87 | 2450 | High toughness and the resistance to wear, suitable for to inlay the system impact rotation rock drilling rock drill head, drills hard and the hard rock |
| YK40 | | 13.90-14.20 | 86.5 | 2450 | High toughness and the resistance to wear, suitable for to inlay the system impact rotation rock drilling rock drill head, drills hard and the hard rock |
| YK45 | | 13.80-14.20 | 86 | 2450 | High toughness and the resistance to wear, suitable for to inlay the system impact rotation rock drilling rock drill head, drills hard and the hard rock |

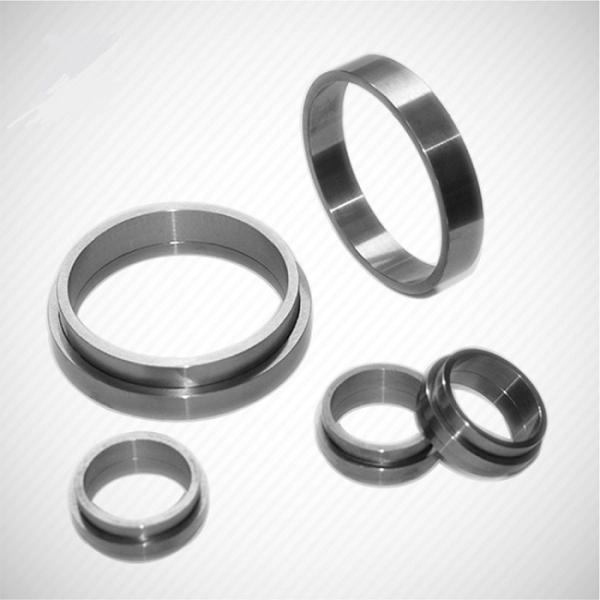

Picture show:
Product Tags:
|
|
Sealing Drilling 105Mpa Tungsten Carbide Wear Parts YK20 Carbide Gas Components Images
|
